Datasheet

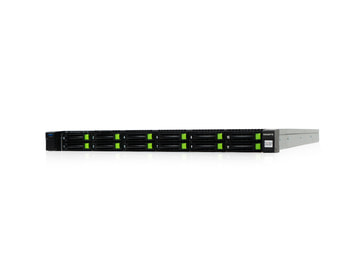

1U Intel Dual-CPU RI2112-GIXSN Server

[Ver. 1.0]
Highlights at a glance:
  • Incl. 1x Intel Xeon 6505P, can be expanded to up to 2x CPUs (8 - 144 cores)
  • Incl. 16 GB RAM, upgradeable up to 3.072TB RAM, (32 DIMMs)
  • 12x 2.5" Storage devices (Hot-swap), Capacities up to 92.16 TB (SSD), 184.32 TB (NVMe)
  • 2 x 1 GBit/s LAN (RJ-45)
  • Expandable with up to 4 add-on cards
  • Energy-efficient power supply 80 PLUS Titanium (>96%)
  • Integrated IPMI (dedicated NIC)
Mainboards
Manufacturer Gigabyte
Mainboards MS94-FS0-000
Chipset Intel System on Chip
Socket Intel LGA 4710
Processor Intel Xeon 6
Main Memory 32 DIMMs 3 TiB DDR5 5200/6400 RDIMM
LAN Onboard 2 x 1 GBit/s LAN (RJ-45)
LAN chipset Intel I350-AM2
Onboard graphic ASPEED AST2600 BMC
Additional card (optional) PNY NVIDIA RTX A1000 (8GB)
USB ports 2x USB on board (type A)
Extension-slots for additional cards
Available slots in the chassis 4x
Onboard ports
mSATA 0x mSATA
M.2 2 x M.2 PCIe 5.0 x4
M.2 form factor 2280, 22110
Drives / storage capacity
Drive slots (total) 12x 2.5" (Hot-swap)
Max. capacity HDD (SATA) 92.16 TB
Max. capacity SSD (SATA) 92.16 TB
Max. capacity SSD (U.2 NVMe) 184.32 TB
Server management
Remote management Integrated IPMI (dedicated NIC)
Power supply
Power supply unit 2x 1600 Watt redundantes Netzteil (80plus Titanium) (1HE GIGABYTE R184-S92-AAV1)
energy efficiency 96%
