OPNsense Desktop Appliance L

OPNsense Desktop Appliance L
Energy-efficient appliance including OPNsense—supports up to 100 users

Our energy-efficient, silent, and high-performance Appliance L is ideally suited for use in offices with up to 100 employees and for connecting server systems via 10 Gbit/s SFP interfaces. Simply plug it in and explore the features of OPNsense with the pre-installed OPNsense Community Edition.

Technical Details:
Processor: Intel Core i5-1235U (10 cores, 1.30 GHz base clock)
Memory: 16 GB SO-DIMM DDR5 RAM (2x 8192 MB)
Storage: 240 GB NVMe SSD
Network: 4 × 2.5 Gbit/s LAN (Intel I226-LM, RJ-45), 2x 10 Gbit/s SFP+ (Intel 82599)
Cooling: Silent operation via passive heat dissipation
Security: Hardware-based encryption via Intel® AES-NI
Dimensions: 58 mm (H), 170 mm (W), 140 mm (D)
Operating temperature: 0 – 50 °C
High energy efficiency: low power consumption during operation

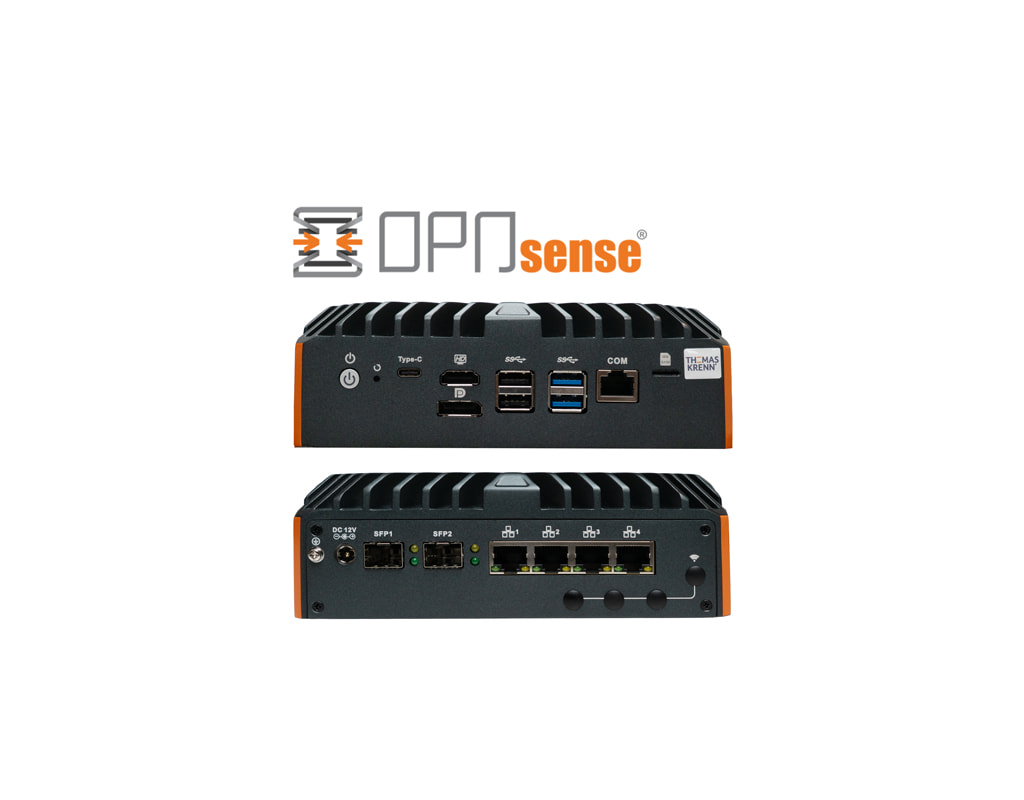

OPNsense Desktop Appliance L - LES_Network_6L_v5_OPNsense

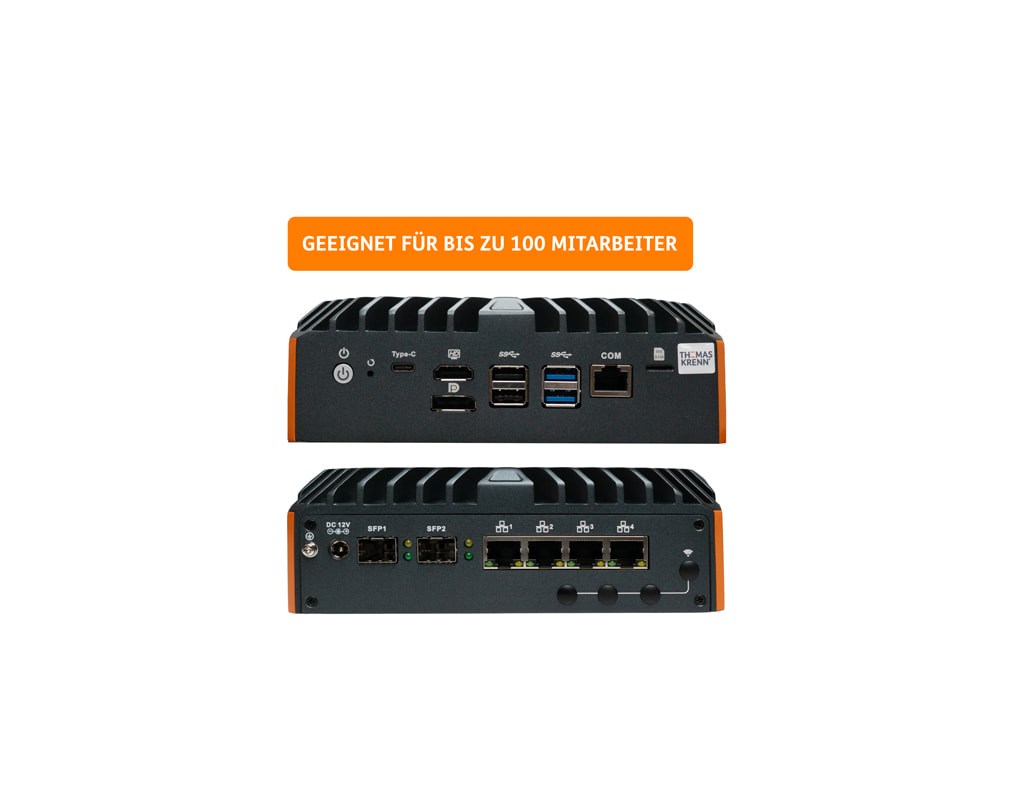

OPNsense Desktop Appliance L - LES_Network_6L_v5_OPNsense_Highlight

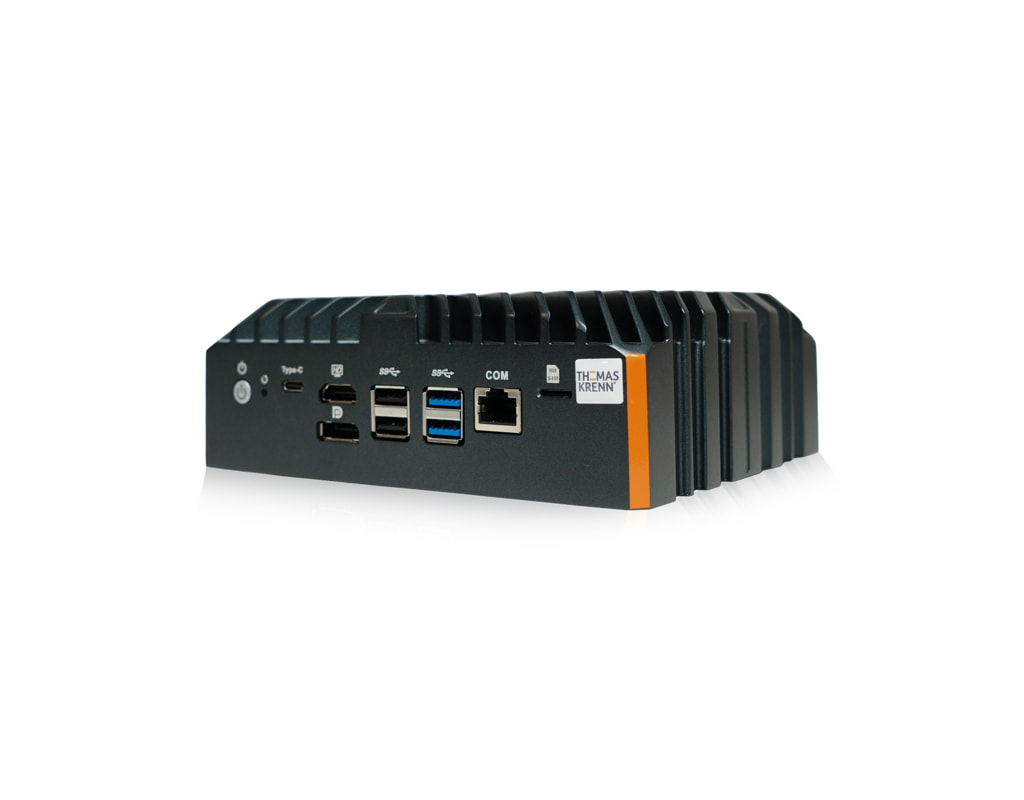

OPNsense Desktop Appliance L - LES_Network_6L_v5_Front View
OPNsense Desktop Appliance L - LES_Network_6L_v5_Front View
OPNsense Desktop Appliance L - LES_Network_6L_v5_Server View
OPNsense Desktop Appliance L - LES_Network_6L_v5_Side View
OPNsense Desktop Appliance L - LES_Network_6L_v5_Rear View
OPNsense Desktop Appliance L - LES_Network_6L_v5_OPNsense
OPNsense Desktop Appliance L - LES_Network_6L_v5_OPNsense_Highlight
OPNsense Desktop Appliance L - LES_Network_6L_v5_Front View
OPNsense Desktop Appliance L - LES_Network_6L_v5_Front View
OPNsense Desktop Appliance L - LES_Network_6L_v5_Server View
OPNsense Desktop Appliance L - LES_Network_6L_v5_Side View
OPNsense Desktop Appliance L - LES_Network_6L_v5_Rear View
Basic configuration Summary

OPNsense Desktop Appliance L

€ 1.389,00
  • Intel Core i5-1235U (10 cores, 1.30 GHz base clock)
  • 4 × 2.5 Gbit/s LAN (Intel I226-LM, RJ-45), 2 × 10 Gbit/s SFP+ (Intel 82599)
  • 16 GB SO-DIMM DDR5 RAM (2 × 8192 MB)
  • 240 GB M.2 NVMe SSD
  • Energy-efficient slim-line power supply

OPNsense Business Subscription

€ 149,00
License data
€ 399,00
License data

Transceiverdetails

€ 31,53
  • Permanently inexpensive
  • Assured quality

Network cables SFP+/QSFP+details

€ 31,53
€ 34,68
€ 37,84

Hint:

We expressly reserve the right to make technical enhancements and release security updates. The end user is solely responsible for the proper management, backup, and protection of their data, as well as for implementing and monitoring necessary security updates during normal operation. As delivered, the system is primarily designed to allow users to gain initial experience with the solution and familiarize themselves with its features in a test or evaluation environment. For use in a production environment, we recommend purchasing a Business Subscription to benefit from expanded support, security, and operational services.
